Speedy Off Auto
High-Tech Automatic Fire Fighting Technology

Fire extinguishing principle & Structure

01

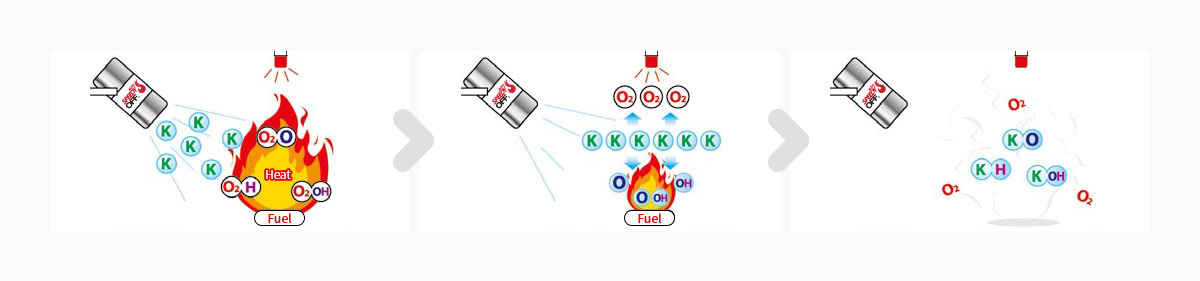

Fire-fighting Principle
The principle of extinguishing fires uses a highly stable solid compound as an extinguishing agent. It is automatically activated by an electrical signal or an increase in the ambient temperature. At this time, a stable solid compound is combusted to produce a high concentration of aerosol, a fire-fighting component.
The fire is extinguished by the o-catalyst extinguishing system where the radicals of the aerosol react with the Oˉ, Hˉ and OHˉ radicals.

Fire-fighting Principle

02

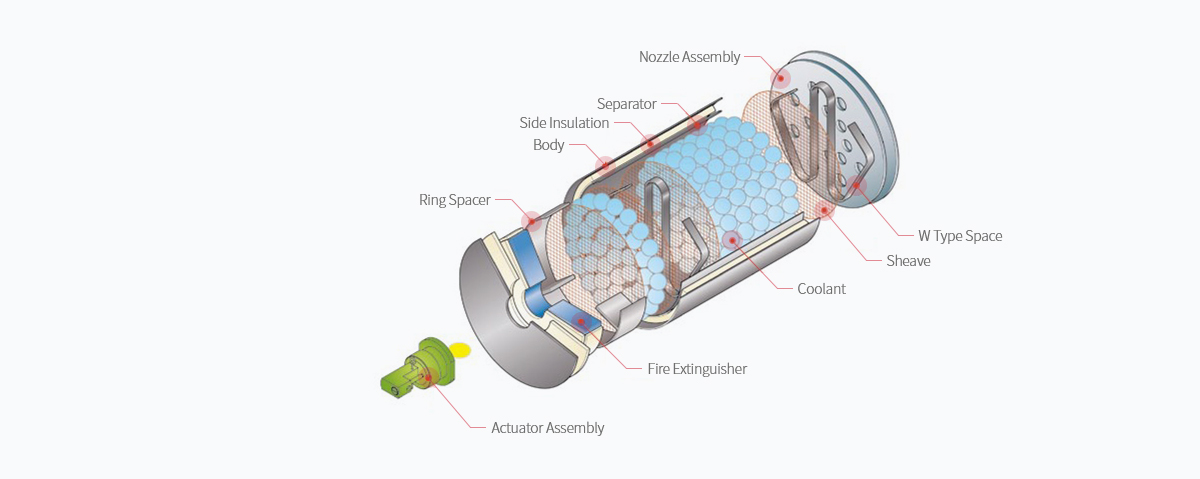

Structure of Speedy Off Auto

Structure of Speedy Off Auto

03

How to Operate

  • Speedy Off Auto의 작동방법 1

    Install the Speedy Off Auto along
    with self generating device at fire
    extinguishing target space.
  • Speedy Off Auto의 작동방법 2

    Self generating device detect temperature
    of 93℃[72℃, 110℃(±5%)]
    upon occurrence of fire accident.
  • Speedy Off Auto의 작동방법 3

    Fire to be extinguished by activating
    the Speedy Off Auto and discharging aerosol
    triggered by electrical signal of
    self generating device.
