- Speedy Off Auto
- High-Tech Automatic Fire Fighting Technology
Type of Speedy off Auto
01

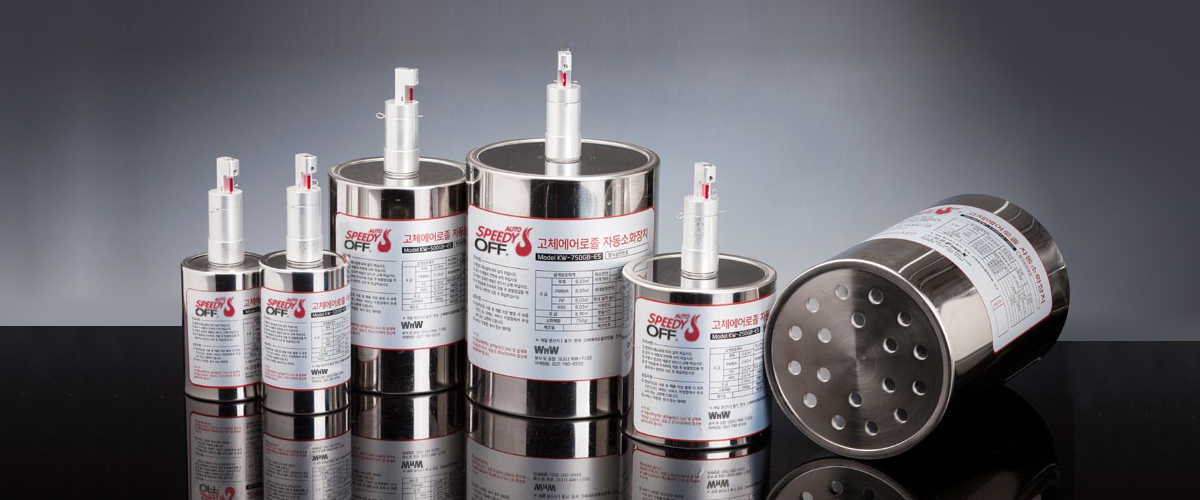

Stand-alone self-operating system
Stand-alone self-operating system, Glass bulb type
| Classification | SA-60 GB-ES |
SA-100 GB-ES |
SA-250 GB-ES |
SA-500 GB-ES |
SA-750 GB-ES |
SA-1000 GB-ES |
SA-1200 GB-ES |
|
|---|---|---|---|---|---|---|---|---|
| Extinguishing agent(g) | 60 | 100 | 250 | 500 | 750 | 1000 | 1200 | |
| Protective Volume (㎥) |
Medium Pressure Fire | 0.64 | 1.07 | 2.67 | 5.35 | 8.03 | 10.7 | 12.84 |
| Oil Fire | 0.71 | 1.19 | 2.97 | 5.93 | 8.9 | 11.85 | 14.24 | |
| Distance (m) |
Human Body | 1 | 1 | 1.5 | 2 | 2 | 2 | 2 |
| Extinguishing Target | 0.2 | 0.3 | 0.4 | 0.7 | 0.8 | 1 | 1 | |
| Release Time (Sec) | 7.5 | 10 | 12.5 | 20 | 16 | 21 | 24 | |
| Size (mm) |
Outer Diameter | 76.2 | 76.2 | 127 | 127 | 165.1 | 165.1 | 165.1 |
| Total Length | 207.2 | 217.7 | 224 | 273 | 304 | 323.5 | 350 | |
| Discharge Range(m) | 1.7 | 2 | 2.6 | 2.9 | 3.5 | under inspection | 4 | |
| Total Weight(g) | 1.05 | 1.2 | 2.55 | 3.4 | 6.1 | under inspection | 7.6 | |
※ Validity : 5 Years (from production date), Warranty : 2 Years (from purchase date)
02

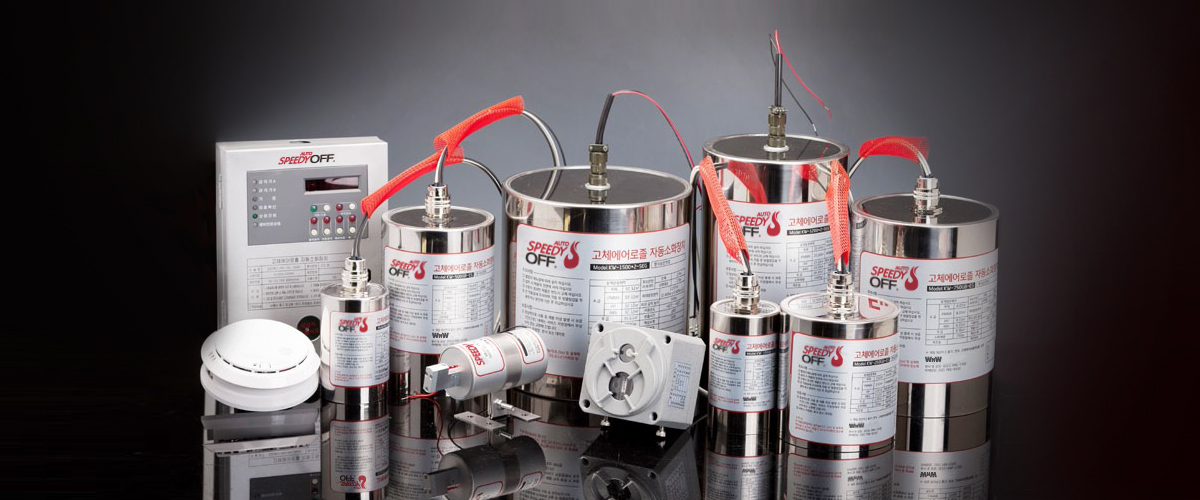

Multi-linked operating system self-powered electric generator
Multi-linked operating system self-powered electric generator
| Classification | SA-1200 x2-SEG |
SA-1500 x2-SEG |
SA-2000 x2-SEG |
SA-2500 x2-SEG |
SA-1200 x3-SEG |
SA-1500 x3-SEG |
SA-2000 x3-SEG |
SA-2500 x3-SEG |
SA-2000 x4-SEG |
SA-2500 x4-SEG |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Extinguishing agent(g) | 2,400 | 3,000 | 4,000 | 5,000 | 3,600 | 4,500 | 6,000 | 7,500 | 8,000 | 10,000 | |
| Protective Volume (㎥) |
Medium Pressure Fire | 25.69 | 32.12 | 42.83 | 53.53 | 38.54 | 48.17 | 64.23 | 80.3 | 85.65 | 107.06 |
| Oil Fire | 28.49 | 35.61 | 47.48 | 59.35 | 42.72 | 53.4 | 71.2 | 89.01 | 94.94 | 118.68 | |
| Distance (m) |
Human Body | 2 | 2.5 | 2.5 | 2.5 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Extinguishing Target | 1 | 1.5 | 1.5 | 1.5 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Release Time(Sec) | 24 | 20 | 24 | 28 | 24 | 20 | 24 | 28 | 24 | 28 | |
| Size (mm) |
Outer Diameter | 165.1 | 216 | 216 | 216 | 165.1 | 216 | 216 | 216 | 216 | 216 |
| Total Length | 270 | 233 | 263 | 304 | 270 | 233 | 263 | 304 | 263 | 304 | |
| Discharge Range(m) | 4 | under inspection | 4 | 4 | 4 | under inspection | 4 | 4 | 4 | 4 | |
| Total Weight(g) | 15.2 | under inspection | 22.4 | 25.4 | 22.8 | under inspection | 33.6 | 38.1 | 44.8 | 50.8 | |
※ Validity : 5 Years (from production date), Warranty : 2 Years (from purchase date)
03

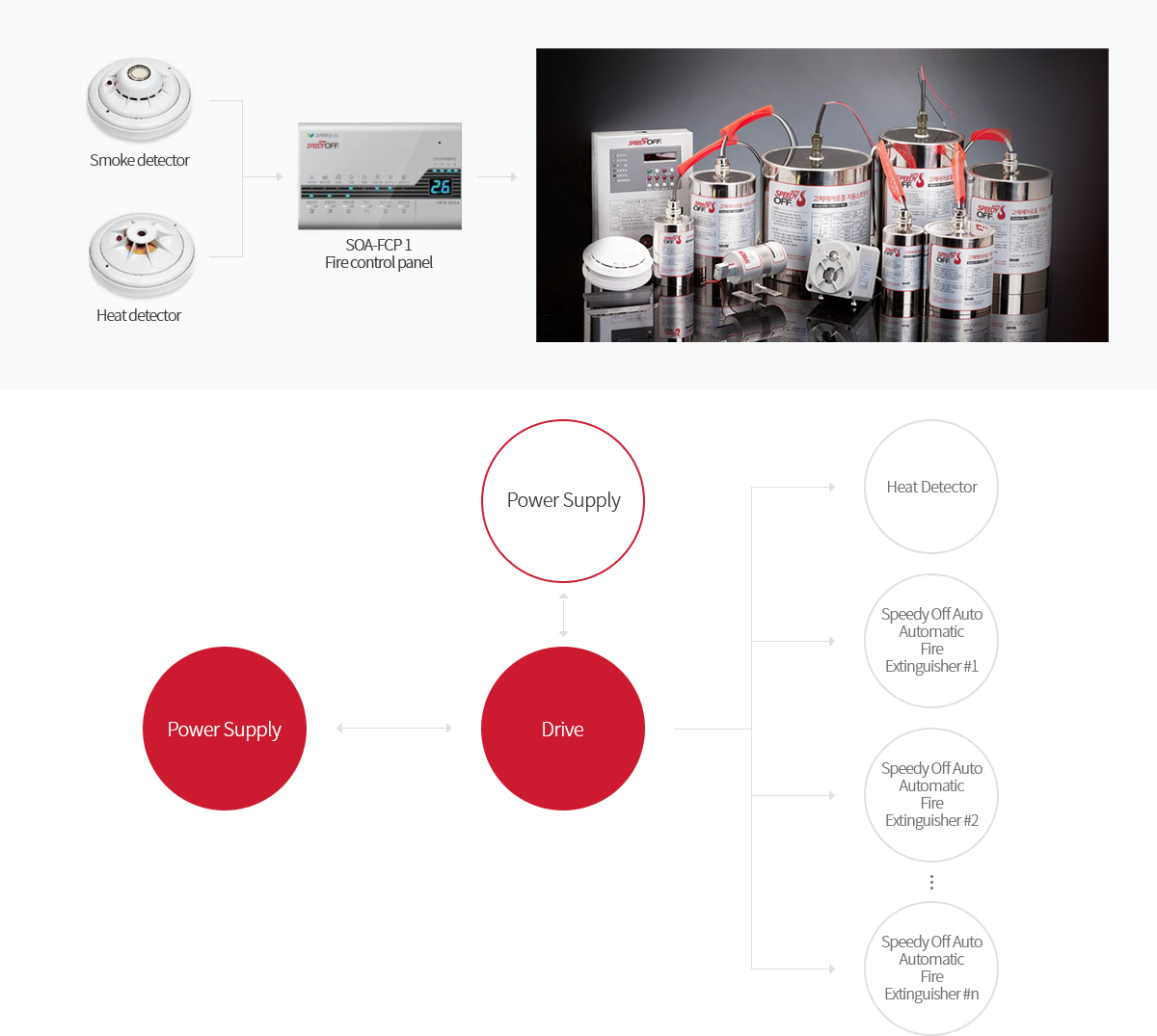

Electric operating system utilizing control panel
